Database Structure

ngshare is using SQLAlchemy to model data relationships and manage database queries.

Tables

  • User: analogous to users of JupyterHub. A user can be a student, instructor, or both.
  • Course: a course for nbgrader, can have multiple students and instructors.
  • Assignment: an assignment, has multiple states; belongs to a course.
  • Submission: a student’s submission to an assignment; includes submission and feedback; belongs to an assignment.
  • File: Store files related to 1) assignment, 2) submission, or 3) feedback.

Allocation Tables

Allocation tables are created by SQLAlchemy to represent many-to-many relationships. You should not worry about them when designing a high-level database structure.

  • instructor_assoc_table: Relationship between instructor (User) and Course
    • Also contains metadata: first_name, last_name, email
  • student_assoc_table: Relationship between student (User) and Course
    • Also contains metadata: first_name, last_name, email
  • assignment_files_assoc_table: Relationship between Assignment and File
  • submission_files_assoc_table: Relationship between Submission and File
  • feedback_files_assoc_table: Relationship between feedback (Submission) and File

Assignment State

Currently, the Assignment table has a boolean column released. It may be used in future versions of ngshare to manage assignment states.

Entity Relationship Diagram

To generate a graph using ERAlchemy:

pip3 install eralchemy
cd ngshare
python3 dbutil.py upgrade head
eralchemy -i sqlite:////tmp/ngshare.db -o database/er.png

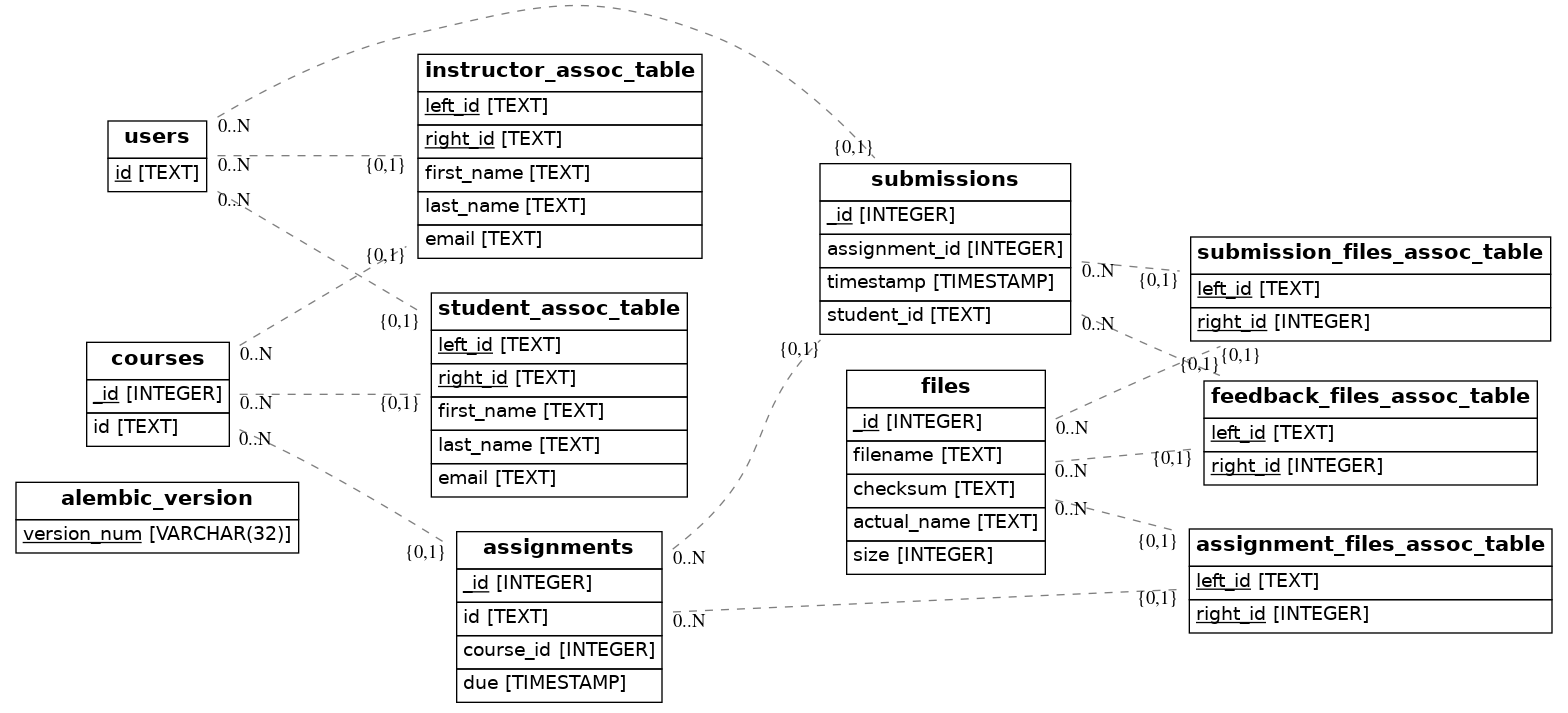

Current Entity Relation Diagram

Entity Relation diagram

Note: this image is manually maintained.
